Sale!

UCE-DSO210 Oscilloscope with Case

$87.99 $75.99

Out of stock

SKU: UCE-DSO210C Category: Tags: , , , , ,
Buy more, Save more ...

Description

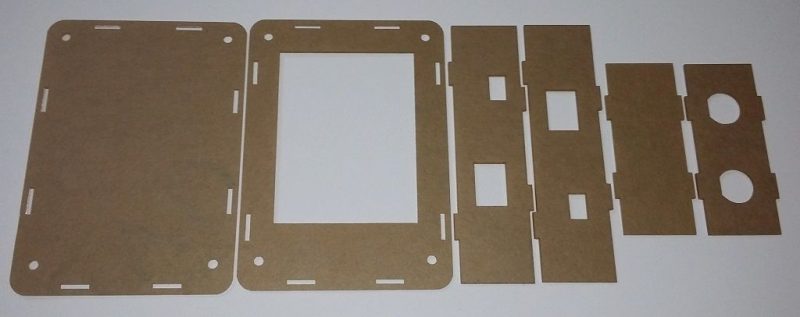

UCE-DSO210 3.2″ TFT Digital Oscilloscope, 10Msps, 2 Ch + probe with DIY Transparent Acrylic Case.

UCE-DSO210 is 2-Channel 10Msps Oscilloscope to perform electronics maintenance, electronic engineering tasks, etc.

Features:

  • Display: 3.2 inch 320×240 pixel color LCD
  • Personalisation: customization of display colors
  • Two channel (BNC connector)
  • XY Mode
  • Analog Bandwidth: 2MHz
  • Maximum sampling rate: 10Msps 12-bit
  • Sampling depth: 8192pts (4096pts per channel)
  • Input impedance: 1MΩ
  • Vertical sensitivity: 50mV/div~20V/div
  • Horizontal sensitivity: 1.25us/div~500ms/div
  • Max input voltage: ±10V (X1 Probe), ±100V (X10 Probe)
  • Supply voltage: 5V (mini USB)
  • Trig modes: Run, single, Hold functions
  • Trigger functions: rising / falling edge, Triggering Cursor
  • Auto Measurement: frequency, ton time, toff time, period time, peak-to-peak voltage, mean voltage, RMS voltage
  • Test signal: 1KHz %50 duty-cycle square wave, 3.3Vpp
  • Cursor: differential measurement for time and voltage
  • FFT analyze: 512 points FFT analyze, THD calculation (input: CH-A)
  • Signal generator: sinus, sinC, square, triangle, sawteeth, arbitrary (0~3.3V, output: CH-A)
  • PC connection: no driver required (USB HID protocol)
  • PC software
  • Firmware upgrade (bootload)
  • Menu language: English

Package List:

  • 1 pc UCE-DSO210 3.2″ TFT Digital Oscilloscope
  • 1 pc Acrylic Case
  • 2 pcs X1, X10 Probe
  • 1 pc touch pen
  • 1 pc USB cable



Additional information

Weight 550 g
Dimensions 18 × 13 × 8 cm

Click for files
